Securing the PCI Card to the Case
Now, secure the card to the case
by screwing it into its expansion slot (Figure 124).

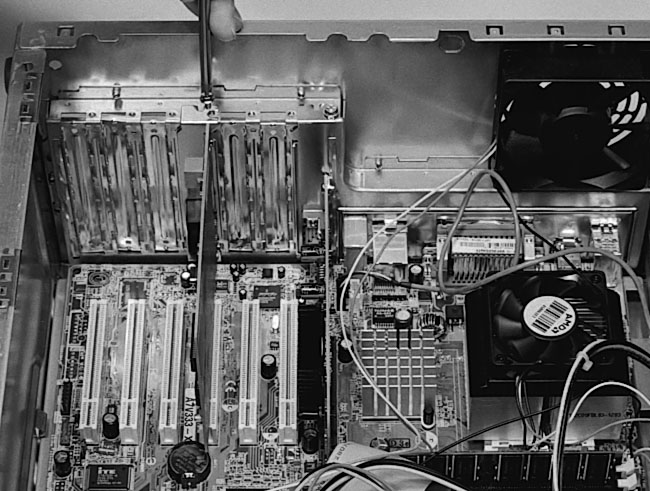

Figure 124: Screwing in the PCI modem card
|
The PCI modem card is now
installed (Figure 125).
Proceed in the same manner to install any sound cards or other PCI cards
you have.

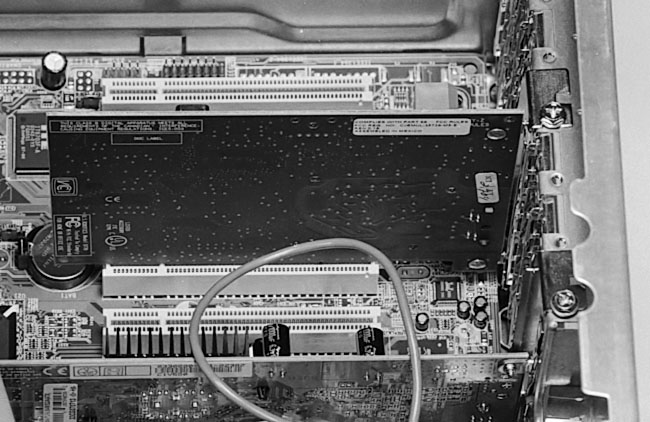

Figure 125: PCI modem card installed By examining the edges of the card where it sits into the socket, we see the card is fully seated. Sometimes if an expansion card device doesn’t work, it’s because the card isn’t fully seated.
|
