Seating the PCI Card in the Slot
Now, with the slot uncovered and
the test screw removed, position the PCI card above its slot and push
it straight down (Figure 123).
Sometimes putting one end of the card in first, by just a little, helps.
Push the card straight down to seat it fully. Give an extra uniform
push to be sure the card sits properly.

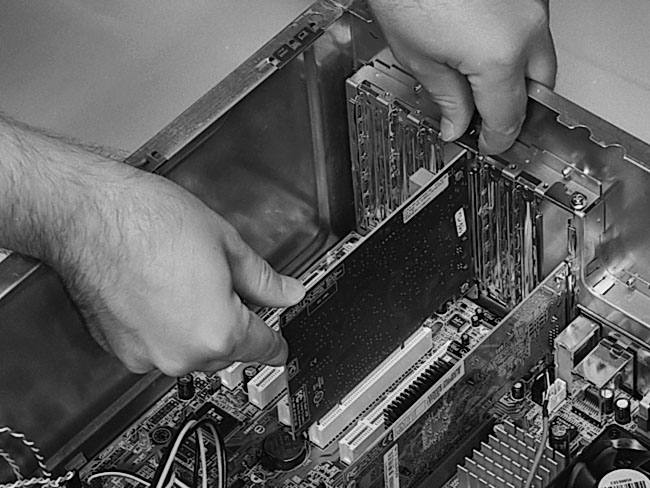

Figure 123: Pushing the PCI modem card into place
|
