Removing the Side Panel
Next, we remove the side panel. It’s
held in place with a single screw, which we remove as shown in Figure 53.
Then the side panel is easily removed (Figure 54).

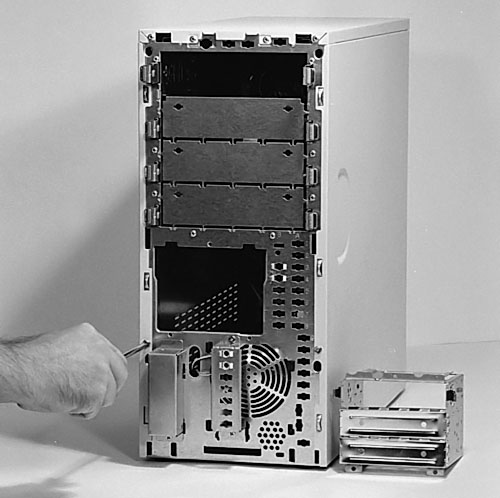

Figure 53: Removing the side panel of the case It’s held in by a single screw. You generally remove the side oppose the I/O shield which we discuss next. Pull the side slightly forward to remove it. Your case may disassemble differently.
|

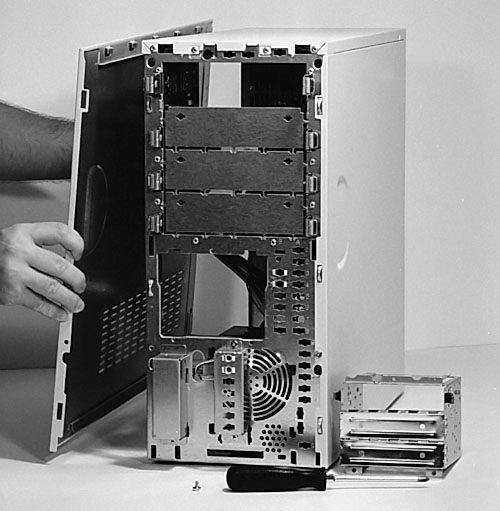

Figure 54: Removing the side panel After sliding the panel forward a bit, it will disengage.
|
